What are cable assemblies used for?
Sometimes called cable harnesses or wiring assemblies, these units serve to organize, consolidate, and protect electrical conductors. Since wire harnesses are custom designed for their application, they can dramatically improve a system's efficiency.
Electrical Characteristics:
|
Part Number:
|
ACHR-03V-S |
|
Description:
|
CONN RCPT ACH W-B 3POS 1.2MM |
| Category: |
Connectors, Interconnects>>Rectangular Connectors - Housings |
|
Minimum Quantity:
|
20pcs |
|
Packaging:
|
Bulk |
|
Series:
|
ACH |
|
Connector
|
Type:Receptacle |
|
Contact Type:
|
Female Socket |
|
Number of Positions:
|
3 |
|
Pitch:
|
0.047" (1.20mm) |
|
Cable:
|
UL10064 |
|
Awg:
|
30 |
|
Wire Color:
|
Custom |
Wire Harness Applications:
1. Wire Harness for LCD
2. Wire Harness for Display
3. Wire Harness for Advertising machine
4. Wire Harness for Monitoring
5. Wire Harness for Back projection
6. Wire Harness for TV
7. Wire Harness for Medical system/monitoring
8. Wire Harness for Laptop
9. Wire Harness for PC and Computer
10. Wire Harness for PDA
11. Wire Harness for DVD
12. Wire Harness for Digital camera
13. Wire Harness for Notebook
14. Wire Harness for tablet PC
15. Wire Harness for HDD
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. Can I get the samples for testing before place an order?
Yes,10-20 pcs samples can be provided for testing
2. How long will it takes to delivery the goods after we make payment?
In general, cargoes can be sent out in 3 working days if in stock, If not in stock, It will takes about 7 workings for production, lead time can be ahead if your order urgent.
3. Can you custom made as per our own drawing?
Yes,we have our own professional engineer ,can design die mould and custom made as your requested.
4. How many departments are there in your company?
We have six departments, marketing department, design department, R&D(research and development) department, quality inspection department, purchasing department, financial department, and administration department.
5. Will the goods be inspected before send out?
Yes, We have 4 people in quality inspection department, you know, quality is most important, we always put quality as the first consideration.
6. Are you a factory or trading company?
we are factory
7. which port is the nearest from you?
Shanghai port is the nearest.
Payment Method:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
Product Tags:
|
|

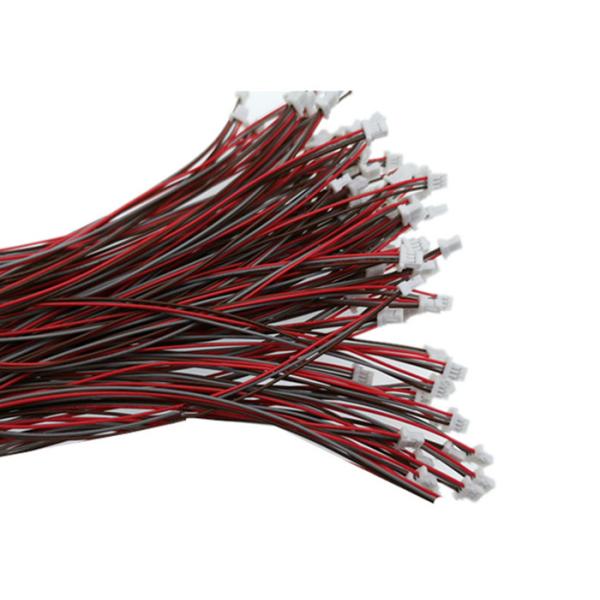

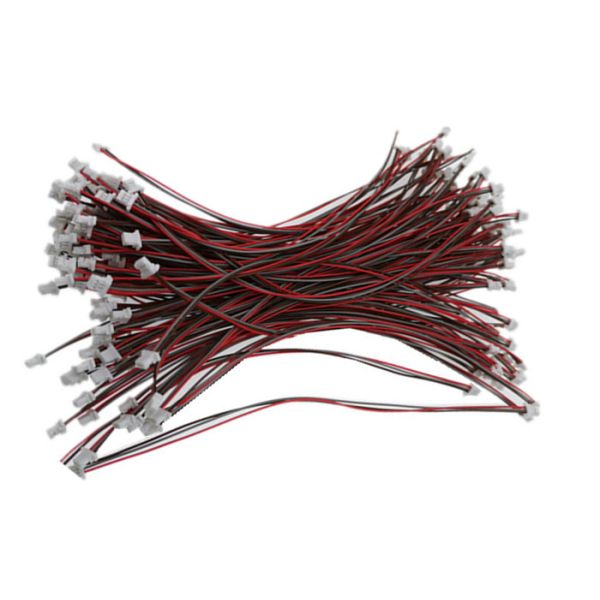

4pin Custom Wiring Harness With Multi Pins Connectors Cable Assembly Images
|
